STRUCTURAL BEAM REPAIR GUIDE
Repairing Structural Beam Ends
A deteriorated beam end may be repairable only after its bearing, connections, remaining section, moisture source, temporary support, and repair design have been evaluated for that project.
START WITH THE STRUCTURE
Establish Repairability Before Choosing Materials
WRP materials may be part of an approved beam-end repair, but material selection does not establish structural suitability.
Project-Specific Evaluation
Determine the beam’s support role, remaining section, bearing area, connections, load path, adjoining framing, and the extent of hidden deterioration.
Support and Repair Design
Temporary support, reinforcement, connection work, and the repair design should be determined by a qualified professional when the structural conditions require it.
Do not treat a material recommendation as structural approval
If bearing, connections, movement, remaining capacity, temporary support, or the repair design is uncertain, pause product planning and obtain project-specific evaluation first.
INSPECTION AND MOISTURE
Define the Damage and Correct the Water Source
Visible decay at the end of a beam may not show the full condition. Inspect the member and connected construction before deciding whether a localized repair is appropriate.
- 1
Inspect the Full Beam End
Check the top, bottom, sides, end grain, bearing area, pockets, and concealed surfaces where access permits.
- 2
Review Connections and Framing
Look for deterioration at connectors, supports, posts, adjoining framing, or other places that affect the intended repair design.
- 3
Identify the Moisture Source
Investigate flashing, roof leaks, exposed end grain, trapped water, coating failure, and drainage conditions.
- 4
Confirm the Remaining Section
Removal limits and the amount of suitable remaining wood must agree with the project-specific structural evaluation and repair plan.
REPAIR OR REPLACE
Let the Evaluation and Repair Design Drive the Decision
A localized rebuild may be considered only when the remaining member, bearing, connections, and repair design support that approach.
A Localized Repair May Be Considered When
- The deterioration is limited and its full extent is understood.
- The remaining section and connections have been evaluated.
- The moisture source can be corrected.
- The project has an appropriate support and repair plan.
Replacement or a Different Structural Solution May Be Needed When
- Deterioration extends beyond a practical localized repair.
- Bearing, connections, or adjoining framing are compromised.
- The remaining section is not suitable for the proposed design.
- The required support or repair approach cannot be established confidently.
AFTER A REPAIR DESIGN IS ESTABLISHED
Follow the Approved Beam-End Repair Process
The exact steps depend on the evaluated conditions and approved design. Product instructions and project requirements control the work.
- 1
Support
Provide temporary support when the project-specific plan requires it before removing material or disturbing connections.
- 2
Prepare
Remove only the unsound material identified by the approved repair scope and clean the prepared area.
- 3
Treat Suitable Wood
Where specified and appropriate, use WRP Wood Consolidant on suitable remaining porous wood according to current instructions.
- 4
Rebuild
Use WRP Epoxy Dough only where it is part of the approved repair to rebuild the localized missing profile.
- 5
Complete the Design
Finish required connection, reinforcement, coating, and protection work exactly as the project-specific plan requires.
FINISH AND PROTECT
Complete the Surface and Moisture-Protection Details
Finishing products refine appearance; they do not establish structural performance. Follow the repair design and current product instructions.
Shape and Refine
After the rebuilding material has cured according to its instructions, shape the localized repair as permitted by the approved scope. Topping or texture products are optional finishing choices where applicable.
Prime, Coat, and Maintain
Use compatible finishing and protective coatings for the project, correct the water-entry detail, and include exposed beam ends in routine inspection and maintenance.
EXISTING WRP PROJECT EVIDENCE

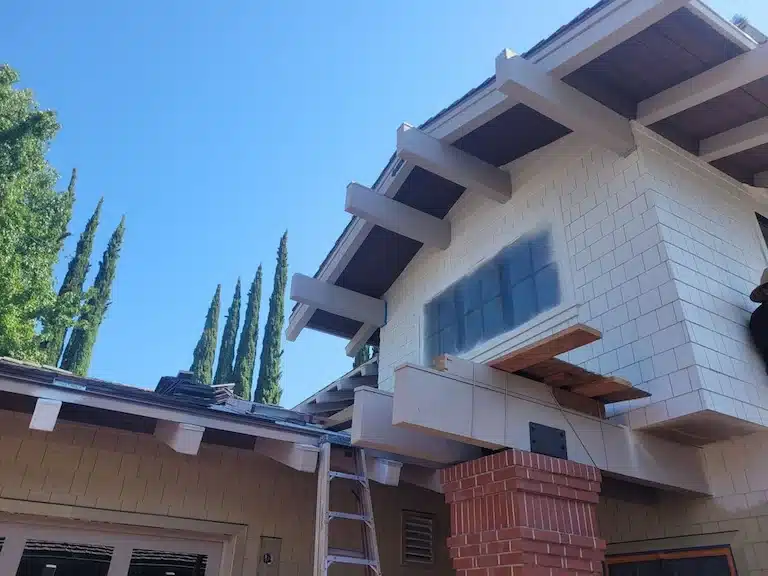

Hunt Club Beam Restoration
The existing WRP Hunt Club case study documents restoration work involving deteriorated exposed beams. It is presented as project evidence, not as structural approval for another beam.
Use Evidence Within Its Limits
Every beam has different geometry, connections, loading, remaining material, access, and moisture conditions. The case study does not replace evaluation or an approved repair design.
Project Context Matters
The existing page source ties this image to the Hunt Club case study. Review the case study for its documented context, and do not transfer its outcomes to another beam without a project-specific evaluation.
MATERIAL PLANNING
Choose Materials Only After the Repair Design Is Established
WRP can help interpret product options for an evaluated repair. A kit choice does not determine whether a structural member is suitable for repair.
Contact WRP
Send clear photos, dimensions, the evaluated repair scope, and any relevant design information for product-planning help.
Review Product Documentation
Use current technical documents and product instructions when materials have been specified for the repair.
Estimate Material Quantity
After suitability and repair design are established, use the comparison guide or Repair Wizard to plan an approximate starting quantity.
FREQUENTLY ASKED QUESTIONS
Structural Beam-End Repair Questions
Can a deteriorated structural beam end be repaired?
Sometimes, but only after the deterioration, remaining section, bearing, connections, moisture source, support needs, and repair design have been evaluated for the project.
Does epoxy establish the beam’s structural capacity?
No. Material selection does not establish capacity or structural suitability. Those decisions depend on the member, loading, connections, remaining section, and approved repair design.
Should the beam be supported during the work?
Temporary support may be required. Its need and configuration should be determined through the project-specific evaluation before deteriorated material or connections are disturbed.
How much damaged wood should be removed?
Removal should follow the evaluated repair scope and stop before exceeding the limits of the approved design. Use the general rot-removal guidance as context, but let the approved scope control the work.
Which WRP materials may be considered?
Where the evaluated repair specifies them, Consolidant may be considered for suitable remaining porous wood and Epoxy Dough for a localized missing profile. Follow current instructions and the approved repair plan.
When should I contact WRP?
Contact WRP after structural evaluation when you need help planning products or approximate material quantity. Send clear photos, dimensions, and the established repair scope.
PLAN THE NEXT STEP
Bring the Evaluation and Repair Scope to WRP
WRP can assist with product planning after the project team has addressed structural suitability, support, connections, and repair design.
Contact and Product Review
Share photos, dimensions, moisture conditions, and the approved repair scope. WRP can help identify relevant product information without replacing engineering judgment.
